| 物料号 |
| 164000 5 |
| 164000 6 |
| 164000 7 |
| 164000 8 |
| 164000 9 |
| 164000 10 |
| 164000 11 |
| 164000 12 |
| 164000 13 |
| 164000 14 |
| 164000 15 |
| 164000 16 |
| 164000 17 |
| 164000 18 |
| 164000 19 |
| 164000 20 |
| 164000 22 |
| 164000 23 |
| 164000 24 |
| 164000 25 |
| 164000 26 |
| 164000 28 |
| 164000 30 |
| 164000 32 |
| 164000 34 |
| 164000 35 |
| 164000 36 |
| 164000 38 |
| 164000 40 |
| 164000 42 |
| 164000 44 |
| 164000 45 |
| 164000 50 |

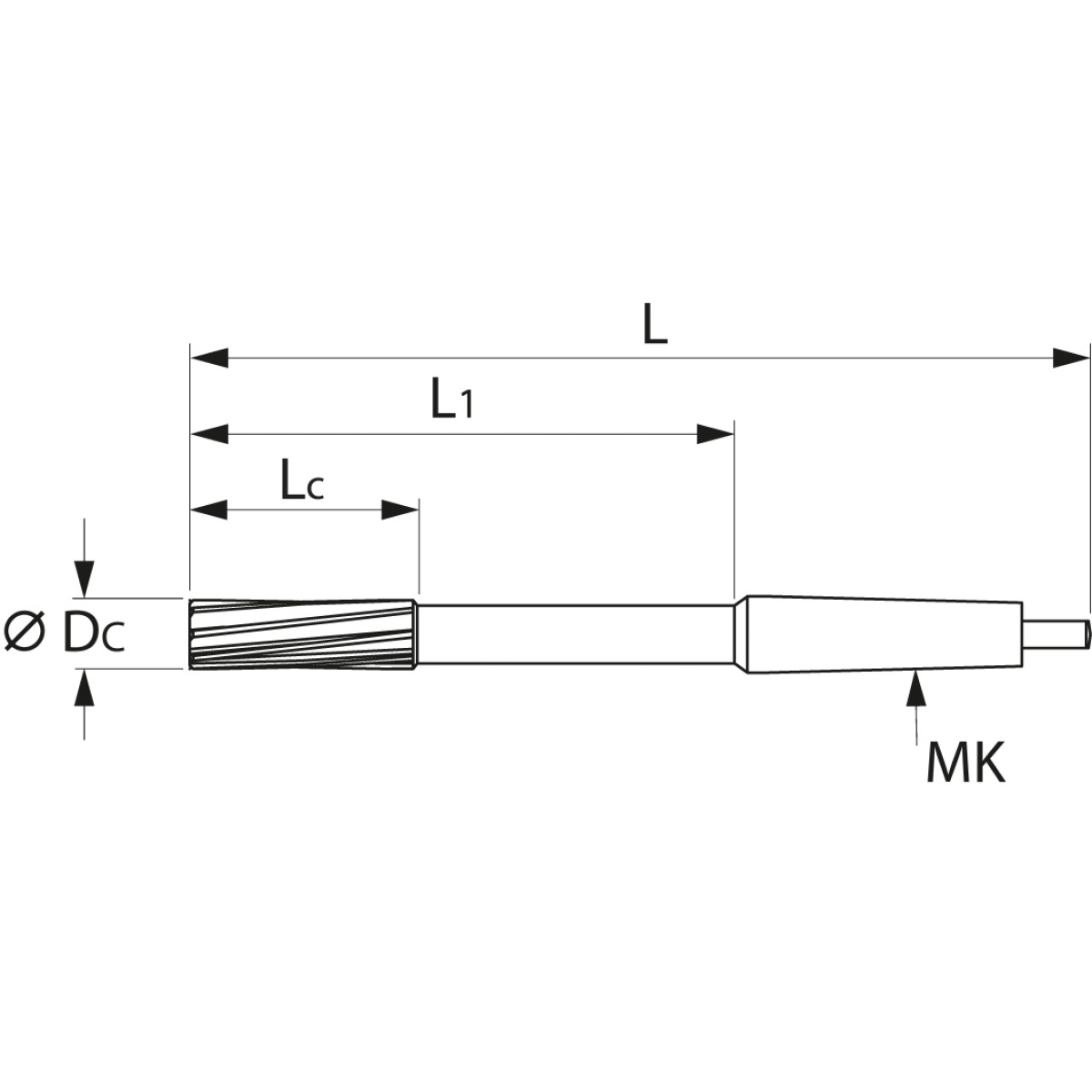

公称直径 DC |
切刃数 Z |
切削刃上偏差 |
切削刃下偏差 |
切削刃长度 Lc |
在钢材料中的建议钻孔直径 < 750 N/mm2 |
孔径公差 |
总长度 L |
悬伸长度 L1 |
莫氏锥柄 MK 尺寸 |
进给量 f，针对抗拉强度 < 750 N/mm2 的钢件 |
5mm
6
0.01mm
0.005mm
23mm
4.9mm
H7
133mm
63mm
1
0.1mm/rev
| ||||||||||
6mm
6
0.01mm
0.005mm
26mm
5.8mm
H7
138mm
68mm
1
0.1mm/rev
| ||||||||||
7mm
6
0.012mm
0.006mm
31mm
6.8mm
H7
150mm
81mm
1
0.1mm/rev
| ||||||||||
8mm
6
0.012mm
0.006mm
33mm
7.8mm
H7
156mm
88mm
1
0.13mm/rev
| ||||||||||
9mm
6
0.012mm
0.006mm
36mm
8.8mm
H7
162mm
94mm
1
0.13mm/rev
| ||||||||||
10mm
6
0.012mm
0.006mm
38mm
9.8mm
H7
168mm
100mm
1
0.15mm/rev
| ||||||||||
11mm
6
0.015mm
0.008mm
41mm
10.8mm
H7
175mm
108mm
1
0.15mm/rev
| ||||||||||
12mm
6
0.015mm
0.008mm
44mm
11.8mm
H7
182mm
115mm
1
0.15mm/rev
| ||||||||||
13mm
6
0.015mm
0.008mm
44mm
12.8mm
H7
182mm
115mm
1
0.15mm/rev
| ||||||||||
14mm
8
0.015mm
0.008mm
47mm
13.8mm
H7
189mm
122mm
1
0.15mm/rev
| ||||||||||
15mm
8
0.015mm
0.008mm
50mm
14.8mm
H7
204mm
121mm
2
0.2mm/rev
| ||||||||||
16mm
8
0.015mm
0.008mm
52mm
15.8mm
H7
210mm
127mm
2
0.2mm/rev
| ||||||||||
17mm
8
0.015mm
0.008mm
54mm
16.8mm
H7
214mm
132mm
2
0.2mm/rev
| ||||||||||
18mm
8
0.015mm
0.008mm
56mm
17.8mm
H7
219mm
137mm
2
0.2mm/rev
| ||||||||||
19mm
8
0.017mm
0.009mm
58mm
18.8mm
H7
223mm
142mm
2
0.2mm/rev
| ||||||||||
20mm
8
0.017mm
0.009mm
60mm
19.8mm
H7
228mm
147mm
2
0.25mm/rev
| ||||||||||
22mm
8
0.017mm
0.009mm
64mm
21.7mm
H7
237mm
156mm
2
0.25mm/rev
| ||||||||||
23mm
8
0.017mm
0.009mm
66mm
22.7mm
H7
241mm
160mm
2
0.25mm/rev
| ||||||||||
24mm
8
0.017mm
0.009mm
68mm
23.7mm
H7
268mm
167mm
3
0.25mm/rev
| ||||||||||
25mm
8
0.017mm
0.009mm
68mm
24.7mm
H7
268mm
174mm
3
0.25mm/rev
| ||||||||||
26mm
8
0.017mm
0.009mm
70mm
25.7mm
H7
273mm
172mm
3
0.25mm/rev
| ||||||||||
28mm
10
0.017mm
0.009mm
71mm
27.7mm
H7
277mm
177mm
3
0.25mm/rev
| ||||||||||
30mm
10
0.017mm
0.012mm
73mm
29.7mm
H7
281mm
181mm
3
0.3mm/rev
| ||||||||||
32mm
10
0.012mm
0.021mm
77mm
31.6mm
H7
317mm
190mm
4
0.3mm/rev
| ||||||||||
34mm
10
0.012mm
0.021mm
78mm
33.6mm
H7
321mm
194mm
4
0.3mm/rev
| ||||||||||
35mm
10
0.012mm
0.021mm
78mm
34.6mm
H7
321mm
195mm
4
0.3mm/rev
| ||||||||||
36mm
10
0.012mm
0.021mm
79mm
35.6mm
H7
325mm
200mm
4
0.3mm/rev
| ||||||||||
38mm
10
0.012mm
0.021mm
81mm
37.6mm
H7
329mm
204mm
4
0.3mm/rev
| ||||||||||
40mm
10
0.012mm
0.021mm
81mm
39.5mm
H7
329mm
204mm
4
0.35mm/rev
| ||||||||||
42mm
12
0.012mm
0.021mm
82mm
41.5mm
H7
333mm
211mm
4
0.35mm/rev
| ||||||||||
44mm
12
0.012mm
0.021mm
83mm
43.5mm
H7
336mm
215mm
4
0.35mm/rev
| ||||||||||
45mm
12
0.012mm
0.021mm
83mm
44.5mm
H7
336mm
215mm
4
0.35mm/rev
| ||||||||||
50mm
12
0.012mm
0.021mm
86mm
49.5mm
H7
344mm
224mm
4
0.4mm/rev
|
| 销售价 | 数量 |
