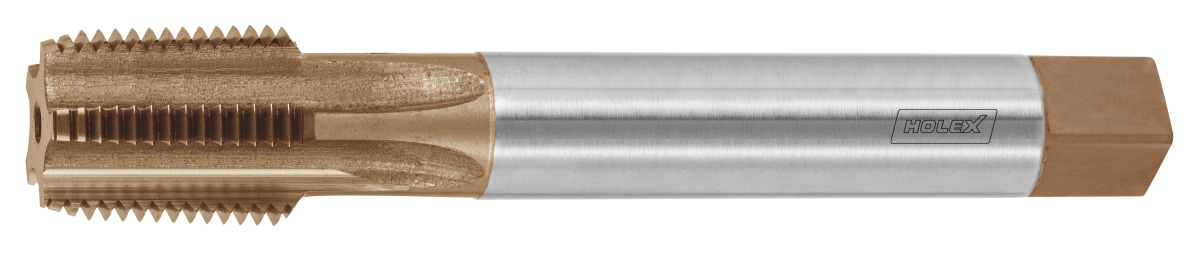

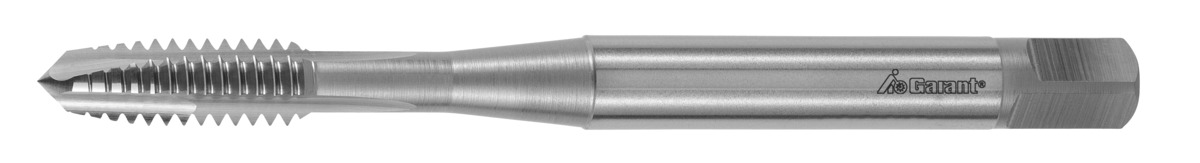

| 物料号 |
| 138095 1-11,5 |
| 138095 1/2-14 |
| 138095 1/4-18 |
| 138095 1/8-27 |
| 138095 3/4-14 |
| 138095 3/8-18 |
刀具材料 |
刀柄规格 |
切刃数 Z |
切割角 |
底孔最小深度 |
底孔直径 A |
底孔直径 B |
总长度 L |
排屑槽数量 |
柄四边 □ |
柄直径 Ds |
校验量规直径 Dmax + 0.05 |
每英寸螺距 |
螺纹深度 |
螺纹直径 |
螺纹规格 |
螺距 |
HSS E
6
13.13degrees
27.4mm
29mm
28.6mm
160mm
6
20mm
25mm
29.69mm
11.5
64.18mm
33.228mm
1-11.5 NPT
2.209mm
| ||||||||||||||||
HSS E
5
12.07degrees
22.9mm
17.85mm
17.5mm
125mm
5
12mm
16mm
18.32mm
14
40.6mm
21.223mm
1/2-14 NPT
1.814mm
| ||||||||||||||||
HSS E
11
3
8degrees
17.5mm
11.1mm
10.75mm
100mm
3
9mm
11mm
11.36mm
18
19.05mm
6.35mm
1/4-20 UNC
1.27mm
| ||||||||||||||||
HSS E
4
13.61degrees
12mm
8.5mm
8.25mm
90mm
4
5.5mm
7mm
8.74mm
27
19.732mm
10.242mm
1/8-27 NPT
0.941mm
| ||||||||||||||||
HSS E
5
13.65degrees
23mm
23.3mm
22.7mm
140mm
5
16mm
20mm
23.67mm
14
51.286mm
26.568mm
3/4-14 NPT
1.814mm
| ||||||||||||||||
HSS E
12
3
8degrees
17.6mm
9/16inch
14.1mm
100mm
3
9mm
12mm
14.8mm
18
28.56mm
9.53mm
3/8-16 UNC
1.587mm
|
